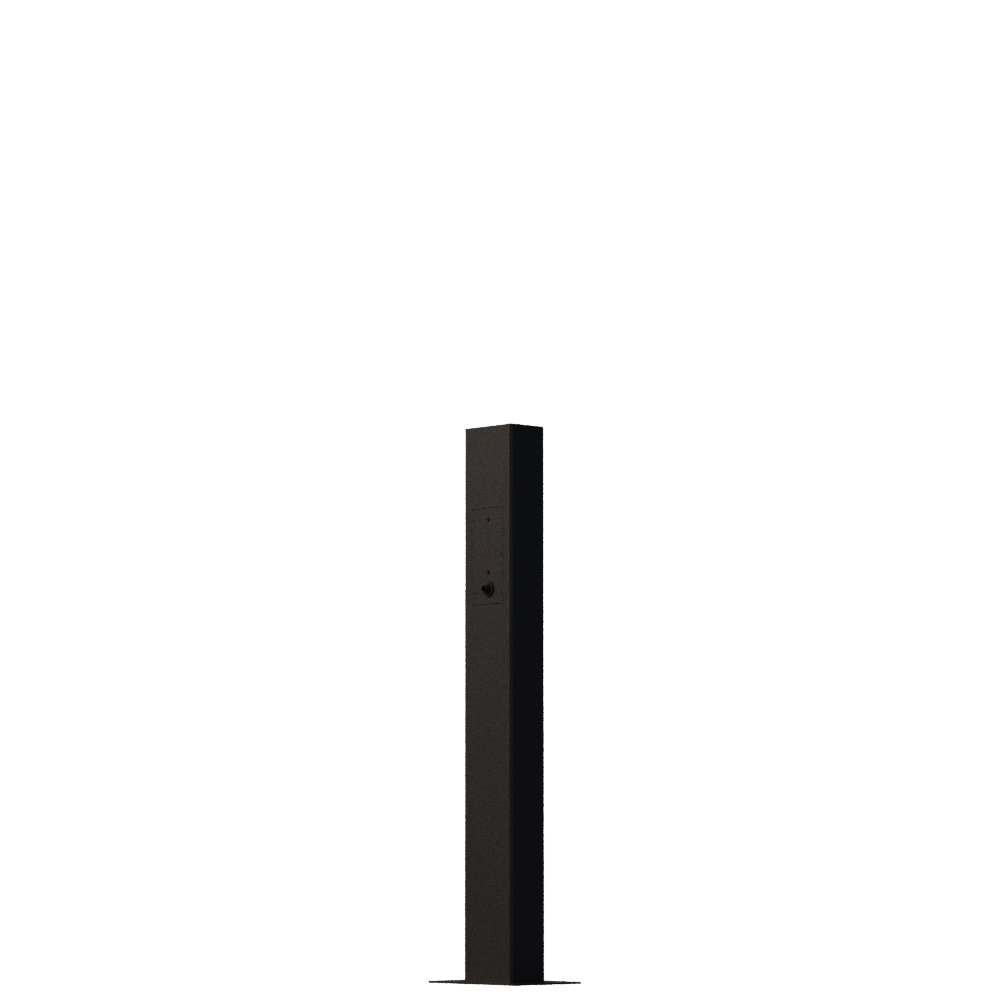

Aestum P425 Roof
The Aestum P425 Roof is a wide-format stainless-steel EV charging pedestal developed for larger wall-mounted chargers. Its integrated roof, modular mounting interfaces and precise detailing combine engineering flexibility with a distinctive architectural presence.
Description
P425 Roof is the P425 corpus in its Roof version – an integrated architectural roof over the charger. Stainless steel construction with a replaceable charger adapter interface.
- Width × Depth: 425 × 125 mm
- Height: 1450 mm
- Top finish: Integrated roof, single or double
- Material: stainless steel, 2–3 mm corpus with a 5 mm anchor plate
- Coating: fine-structure architectural powder coating, matte – RAL 7016, RAL 9005, Alesta Oxyde 2, RAL 6009, or a custom RAL
- Mounting: installation on concrete, ground installation, or extended ground installation where increased frost protection is required
- Cable entry: from below
- Corpus weight: 22.8 kg – corpus only, without adapter plate, top plate and mounting
Compatible charger brands: Alfen, Andersen, Charge Amps and Volvo. See the full compatibility list.
